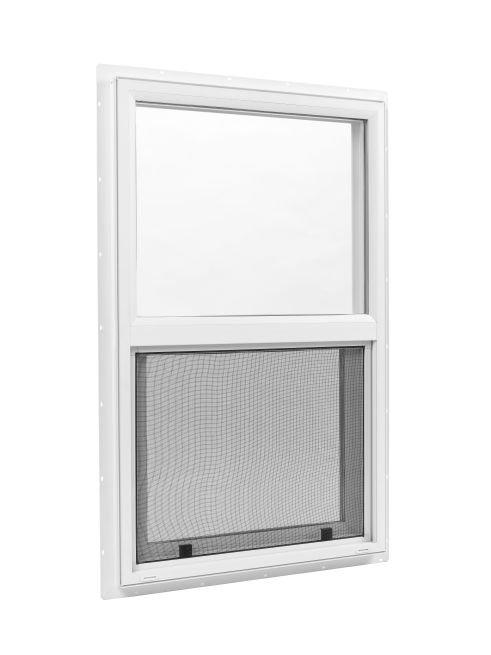

EXELIS 190

hung-slider windows

Simplicity meets performance

up to
CW-PG100
 NAFS (PG)

up to
40db
 ASTM E90 Acoustical (STC)

down to
0.24
 U-value*

A window that combines the simplicity of a side-load design with high performance, suitable for both new construction and replacement projects.
Our System 190 Hung-Slider system offers different frame options for accessory grooves, integral nailing and/or stucco fin.
With the System 190 design, single hung, single slider and fixed configurations are possible. The system is available in white, beige or clay.

Baby boy in fathers arms looking through and touching window
Weblics®
CSS-Only
Superior Window System
Weblics®
CSS-Only

Missing Gallery

Features

  • Multi-chambered frame design with staggered weep system channels for efficient water drainage.
  • Pocket sill configuration for structural integrity.
  • T-mullion profile for multiple-lite configurations within a single perimeter frame.
  • High-definition finish for weather and stain resistance and ease of maintenance.

Performance

Test ResultsDescription
Structuralup to LC-PG40
Acousticalup to STC 32; OITC 27
Thermal*down to 0.24*

*based on simulation

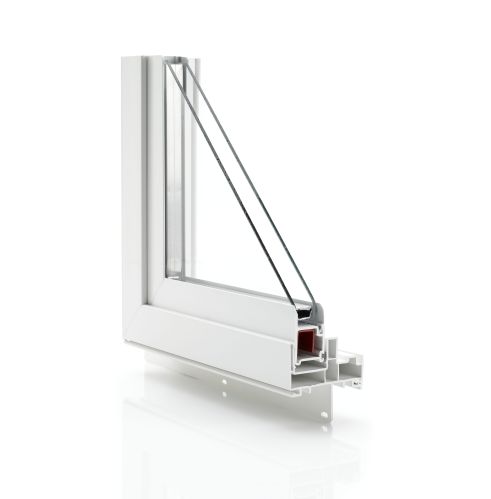

Performance in detail

Missing Title
1
1
Up to 3/4 in (19 mm) glazing capability

Provides excellent acoustical and energy performance properties to meet current standards

2
2
Interlocking sashes with weather seals

Guard against air and water infiltration

3
3
Pocket sill with frame accessory grooves

Provides structural integrity. Hung and slider designs use same frame for reducing SKUs inventory

4
4
Frame accessory grooves

Accept a variety of accessories such as brickmolds, extension jambs and mulling components

5
5
Main profiles engineered with multiple chambers

Increase strength, energy performance and allow efficient water drainage

1
Up to 3/4 in (19 mm) glazing capability

Provides excellent acoustical and energy performance properties to meet current standards

2
Interlocking sashes with weather seals

Guard against air and water infiltration

3
Pocket sill with frame accessory grooves

Provides structural integrity. Hung and slider designs use same frame for reducing SKUs inventory

4
Frame accessory grooves

Accept a variety of accessories such as brickmolds, extension jambs and mulling components

5
Main profiles engineered with multiple chambers

Increase strength, energy performance and allow efficient water drainage

Performance in detail

Missing Title
1
1
Integral nailfin

Provides option for use in new-construction and replacement applications

2
2
Frame design

Accepts a variety of screen styles including FlexScreen

1
Integral nailfin

Provides option for use in new-construction and replacement applications

2
Frame design

Accepts a variety of screen styles including FlexScreen

missing title
missing title

Strom protection needed?

Upgrade Exelis 190 with RAUSHIELD

more Information

Downloads

System 190 hung-slider windows sell sheet
System 190 hung-slider windows brochure
